Rules

Rules make an item react to more than its own state. They exist on every kind of item: lights, LED strips, appliances, the robot vacuum dock, furniture, text items and rooms.

How rules are evaluated

rules is an ordered list. Each rule has conditions (if) and outputs. For each output field, the first rule whose conditions all hold and which sets that field wins. A rule without if is the default.

rules:
  - if: [ ... ]        # all conditions must hold (AND)
    color: red
  - color: blue        # no "if": applies when no earlier rule set a colour

Conditions

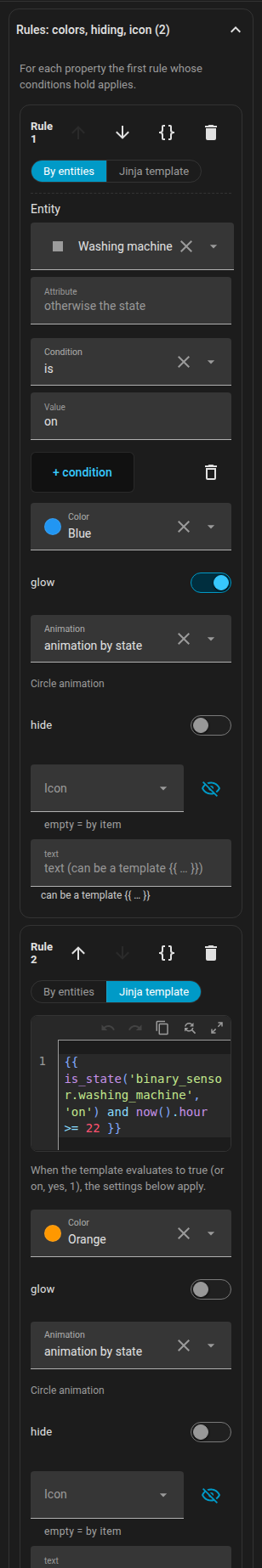

You can write conditions in two modes. Every rule has a switch By entities / Jinja template; switching from entities to Jinja converts the existing conditions.

By entitiesJinja template

A condition is {entity, attribute?, state | state_not | above | below}. state and state_not may be a list. {any: [conditions]} is an OR group.

if:
  - entity: climate.living_room
    attribute: hvac_action
    state: heating
  - entity: sensor.outdoor_temperature
    below: 5
  - any:
      - entity: binary_sensor.window
        state: "on"
      - entity: binary_sensor.door
        state: "on"

In the form, each condition has an entity (with a this entity shortcut), an optional attribute, and the operator is / is not / above / below / template. New conditions are prefilled with the entity of the item (a room uses its temperature sensor).

A single condition {template: "{{ ... }}"}. Home Assistant renders it live, and it is true for true, on, yes, 1 or a non-zero number.

if:
  - template: "{{ is_state('binary_sensor.front_door', 'on') and states('sensor.outdoor_temperature') | float(0) < 0 }}"

A text output that contains {{ }} is a template as well.

Outputs

Output	Effect
color	Tints the icon and the badge border; on furniture the outline and fill; on a light it overrides the bulb colour (badge, glow, strip); on the robot it replaces the theme colour, also in the dock
glow	Adds a glow around the item
animate	Overrides active of an appliance: true / false. animate: false also stops the icon animation
wave	Colour of the radiator's heat waves
text	Replaces the text under the icon (plain or a template)
tint (or color)	On a room: shades the floor; opacity sets its strength (default 0.14)
hide	Hides the item (on a room: its label)
icon	Swaps the icon (appliances, lights, furniture, the dock). none removes it; pick it with the icon picker
background	Background of a text item
fx	Ring animation: ring, radar, comet, countdown, spin, orbit, breath, blink, heartbeat, shake, none
progress	An entity that drives a countdown (see below)
progress_total	A length in minutes for a countdown

Colours: red, orange, yellow, green, blue, purple, pink, white, black, any theme colour name picked in the form (stored by name, for example teal), or any CSS colour (hex, rgb(...), var(...)).

Lights, LED strips, the dock and furniture have no ring animation of their own, so the ring appears only when a rule sets fx. The ring of a LED strip is in the middle of the strip, on furniture in the middle of the rectangle.

For an output of a ring the priority is: rule, then the appliance's own setting, then the alarm default by state.

Countdown

fx: countdown draws a shrinking arc. Where it gets its progress:

• progress: timer.kitchen: a timer (active or paused),
• progress: sensor.dryer_remaining with device_class: duration (seconds, minutes or hours; the total is progress_total, otherwise the highest value seen so far),
• progress: sensor.dryer_end with device_class: timestamp (the end time; the start is the last_changed of the running device, otherwise progress_total),
• progress: sensor.dryer_progress in %: the ring fills like a battery (0 % empty, 100 % full),
• progress_total: 45 without an entity: a countdown of that length in minutes, measured from the change of the rule's condition entity (for an appliance from the moment it starts running).

Without any of these the countdown is a decorative 4 second cycle.

Rules as YAML

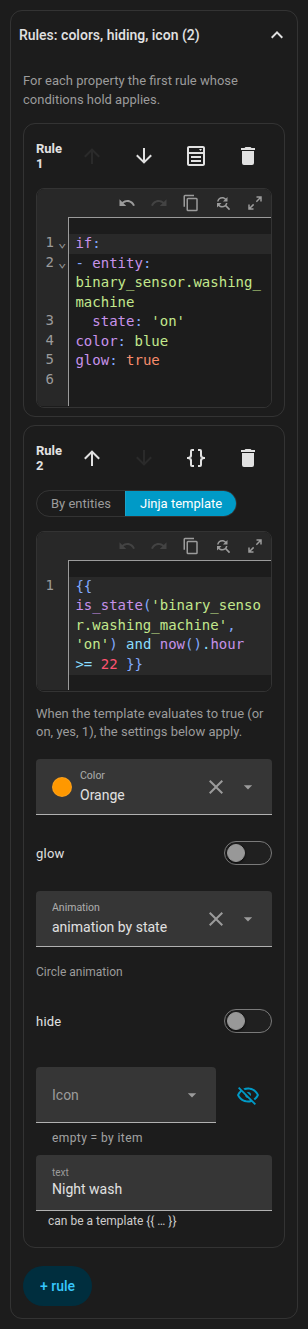

Every rule has a { } button in its header that opens just that rule as YAML in the Home Assistant code editor (syntax colours, line numbers, suggestions for entities and icons). The change is committed when you leave the editor. The same YAML is what you see in the plan format.

AI Task assistant

If your Home Assistant has an ai_task.* entity that supports data generation, the Rules section shows Suggest with AI. Describe in a sentence what you want. The editor sends the description to ai_task.generate_data together with the rules format, the outputs allowed for this item, its entity (state and attributes), the current rules and a list of your entities (up to 1500, without update, event, scene and script entities). The answer arrives as YAML and opens as a draft; only Use draft replaces the rules. If the request cannot be fulfilled, the assistant answers with one sentence that you see as a message.

Examples

Washing machine finishing

devices:
  - id: washer
    kind: generic
    name: Washer
    entity: sensor.washer_state
    icon: mdi:washing-machine
    x: 1.2
    z: 3.4
    rules:
      - if:
          - entity: sensor.washer_state
            state: running
        color: blue
        animate: true
        fx: countdown
        progress: sensor.washer_finish_time   # device_class: timestamp
      - if:
          - entity: sensor.washer_state
            state: finished
        color: green
        fx: blink
        text: Done

Door left open

A template with now() is re-rendered every minute, so the rule turns on five minutes after the door opened.

rooms:
  - id: hall
    name: Hall
    points: [[0, 0], [3, 0], [3, 2.5], [0, 2.5]]
    rules:
      - if:
          - template: >-
              {{ is_state('binary_sensor.front_door', 'on')
                 and (now() - states.binary_sensor.front_door.last_changed).total_seconds() > 300 }}
        tint: orange
        opacity: 0.3

Leak alarm

devices:
  - id: leak
    kind: generic
    name: Leak
    entity: binary_sensor.kitchen_leak
    x: 2.0
    z: 1.0
    rules:
      - if:
          - entity: binary_sensor.kitchen_leak
            state: "on"
        color: red
        glow: true
        fx: blink
        text: Leak!
      - hide: true

The last rule has no condition, so the item is hidden whenever there is no leak.

Battery-style percentage ring

devices:
  - id: phone_battery
    kind: generic
    name: Phone
    entity: sensor.phone_battery_level
    x: 4.0
    z: 2.0
    rules:
      - if:
          - entity: sensor.phone_battery_level
            below: 20
        color: red
        fx: countdown
        progress: sensor.phone_battery_level
      - fx: countdown
        progress: sensor.phone_battery_level
        color: green

Timer countdown

An oven that counts down 45 minutes from the moment it is switched on:

devices:
  - id: oven
    kind: generic
    name: Oven
    entity: switch.oven
    x: 3.1
    z: 0.4
    rules:
      - if:
          - entity: switch.oven
            state: "on"
        fx: countdown
        progress_total: 45
        color: orange

And a kitchen timer helper that drives the ring:

    rules:
      - if:
          - entity: timer.kitchen
            state: active
        fx: countdown
        progress: timer.kitchen
        color: yellow

Radiator that reacts to window, boost and valve

devices:
  - id: radiator_living
    kind: radiator
    entity: climate.living_room
    x: 4.3
    z: 1.1
    rules:
      - if:
          - entity: switch.boost_living_room
            state: "on"
        color: yellow
      - if:
          - any:
              - entity: binary_sensor.living_room_window
                state: "on"
              - entity: binary_sensor.balcony_door
                state: "on"
        color: blue
      - if:
          - entity: switch.valve_living_room
            state: "on"
        color: orange
        animate: true
        wave: red
      - animate: false

Back to Items, or see the Plan format.
